Home > SCHNEIDER > HMI > HMIGXU3500
Manufacturer SCHNEIDER
Reference HMIGXU3500
Designation 7 inch wide screen, Basic model, 1 serial port, embedded RTC
from 399 € (VAT excluded)   12-months warranty on SCHNEIDER - HMIGXU3500
Sent within 2/3 weeks

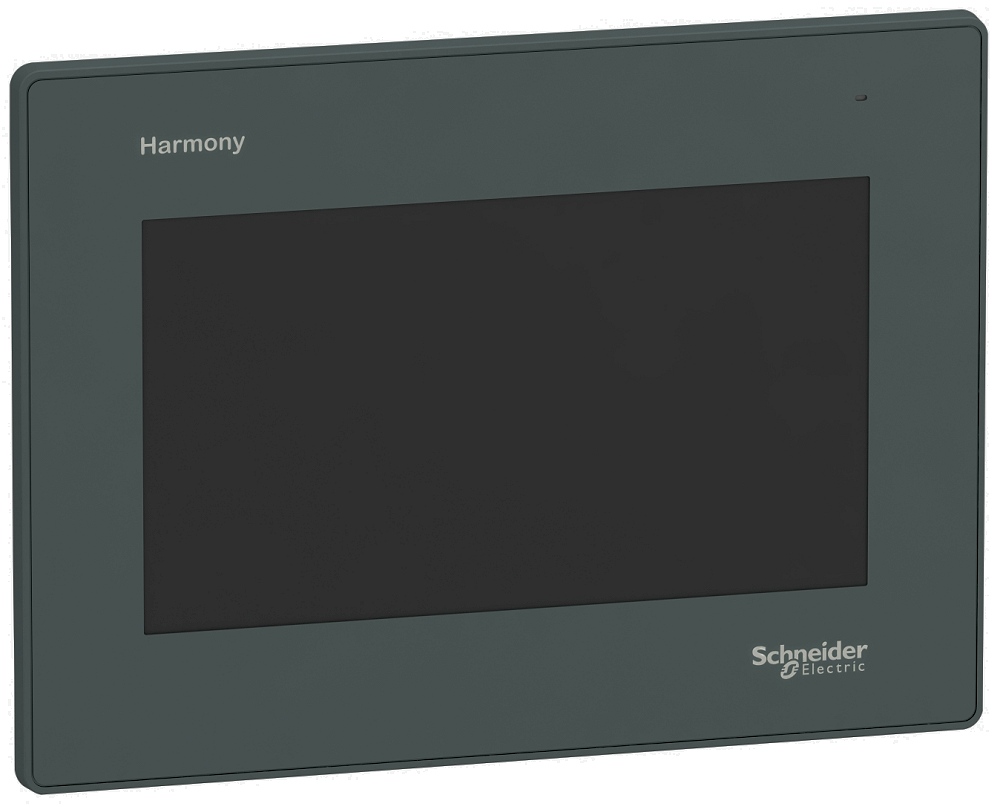

HMIGXU3500
7 inch wide screen, Basic model, 1 serial port, embedded RTC
STATUS : NEW - sealed
ORDER NOW
Want a better price ?
- for larger quantities of the same part?
- if you order different parts of our catalog ?
- if you find a better price elsewhere ?
Please, ask us for price, stock and delivery delay
HMIGXU3500 - PRODUCT DESCRIPTION
This product is part of the Magelis Easy GXU range, an offer of touchscreen panels. The advanced touchscreen panel features 7inch LCD screen and supports 800 x 480 pixels WVGA resolution. It is designed with an internal memory of 32MB for application, internal DDR of 128MB and internal backup memory of 128kB. It supports 65536 colours with backlight lifespan of 20000 hours. It is a touchscreen panel with a rated supply voltage of 24V DC. It is furnished with 9-way male D-Sub (DE-09) connector, RS422/RS485 COM1 serial link and USB type mini B integrated connections. It is an IP65 rated product. It is suitable for textile, packaging, HVAC and pumping applications. This product is certified by CE. Magelis Easy GXU, Essential touch screen panels, are entry-level products that are perfectly tailored to meet the specific requirements of emerging markets. In other words, they answer to the following challenges, fit for purpose at affordable price with no compromise on easiness, robustness, availability and services.
Specifications :
Range of product : Harmony Easy GXU
Product or component type : Advanced touchscreen panel
Display type : LCD touch screen
Display colour : 65536 colours
Display resolution : 800 x 480 pixels WVGA
Display size : 7 inch
Backlight lifespan : 20000 hours
[Us] rated supply voltage : 24 V DC
Software designation : Vijeo Designer Basic configuration software
Memory description :
- Internal, 32 MB for application
- Internal DDR, 128 MB
- Internal, 128 kB for backup
Integrated connection type :
- COM1 serial link: 9-way male - SUB-D connector,
- RS422/RS485
- USB type mini B
Cut-out dimensions 190 x 135 mm
Environment
Quality labels : CE
Ambient air temperature for operation : 0…50 °C
Ambient air temperature for storage : -20…60 °C
IP degree of protection : IP65 (front panel)
HMIGXU3500 - TECHNICAL SPECIFICATIONS
Links and Documents for HMIGXU3500
Documents common to all HMI models
HMIGXU3500 - PICTURE(S)
