Home > SCHNEIDER > PLC > M340 > ABE7R16S210
Manufacturer SCHNEIDER
Reference ABE7R16S210
Designation sub-base - soldered electromechanical relays 16 channels
Ask us !   12-months warranty on SCHNEIDER - ABE7R16S210
Warning : MOQ of 3 parts (Minimum Order Quantity)
Sent within 8 / 10 days
ABE7R16S210
sub-base - soldered electromechanical relays 16 channels
ABE7 - relay 10 mm
STATUS : BRAND NEW
EAN13 : 3389110545289
Weight : 0.7 Kg (package weight for one unit)
ORDER NOW   MOQ (Minimum Order Quantity) : 3
Want a better price ?
- for larger quantities of the same part?
- if you order different parts of our catalog ?
- if you find a better price elsewhere ?
Please, ask us for price, stock and delivery delay
ABE7R16S210 - PRODUCT DESCRIPTION
his product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with soldered electromechanical relay, provides 16 channels. It has normally opened contact for pre-actuator. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 24V DC and a maximum current of 10A per output. It offers electrical durability about 500000 operating cycles. It is an IP2x rated product. Its dimension is 206mm (Width). It weighs 0.405kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
ABE7R16S210 - TECHNICAL SPECIFICATIONS
Links and Documents for ABE7R16S210
Documents common to all PLC/M340 models

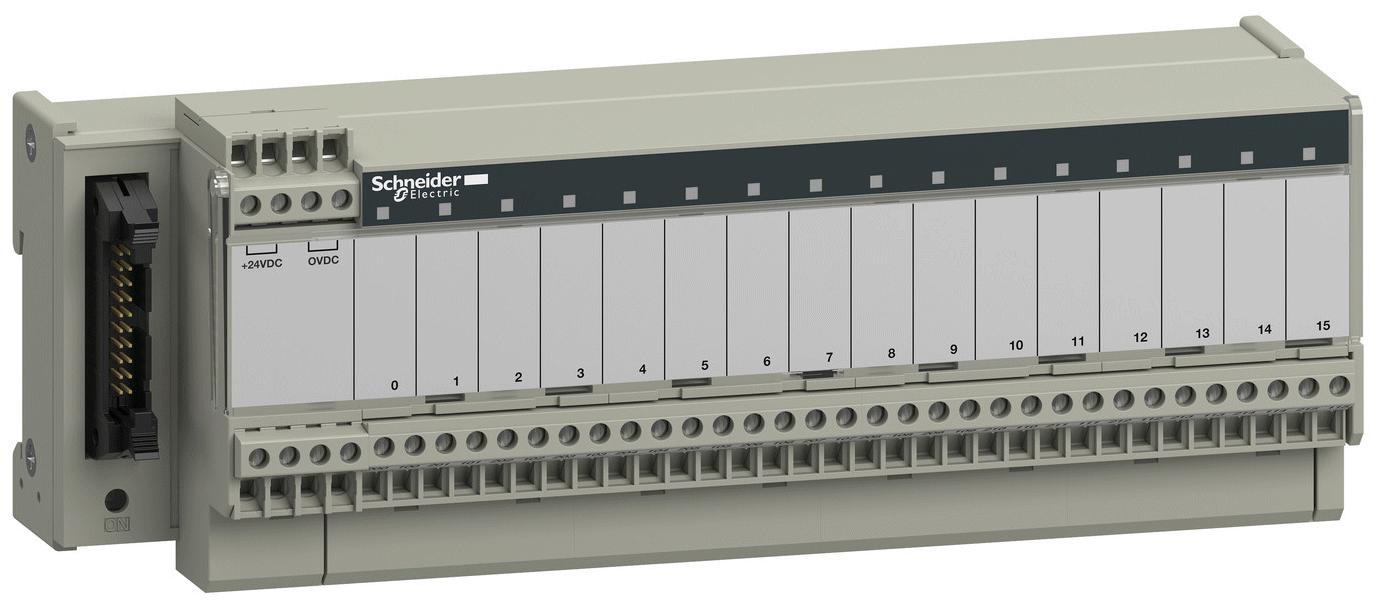

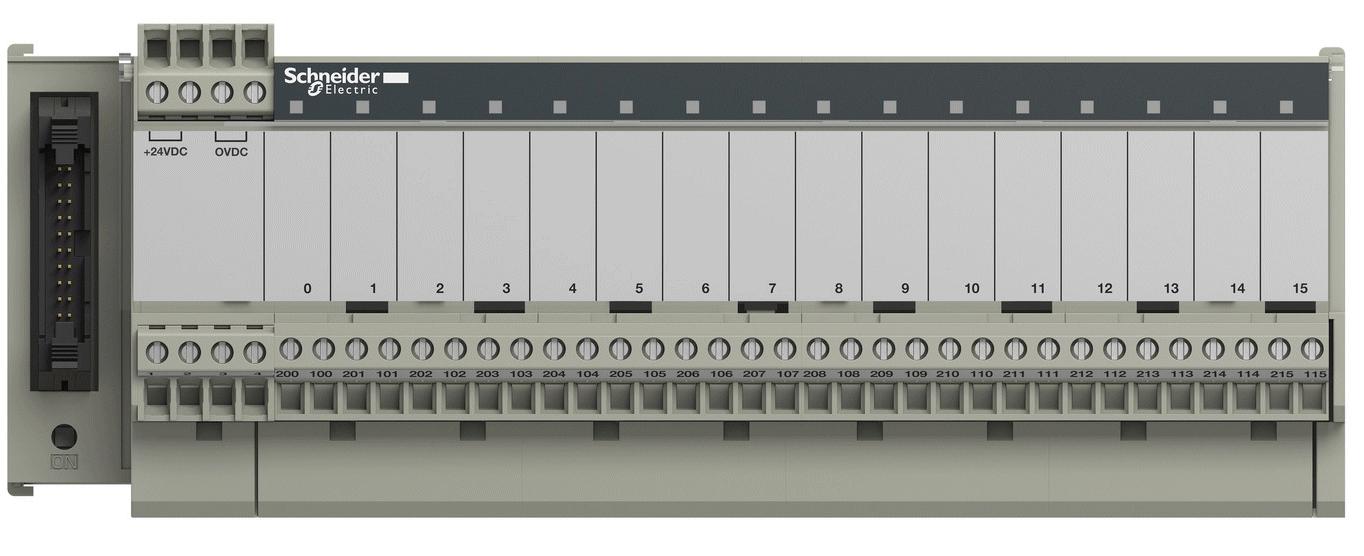

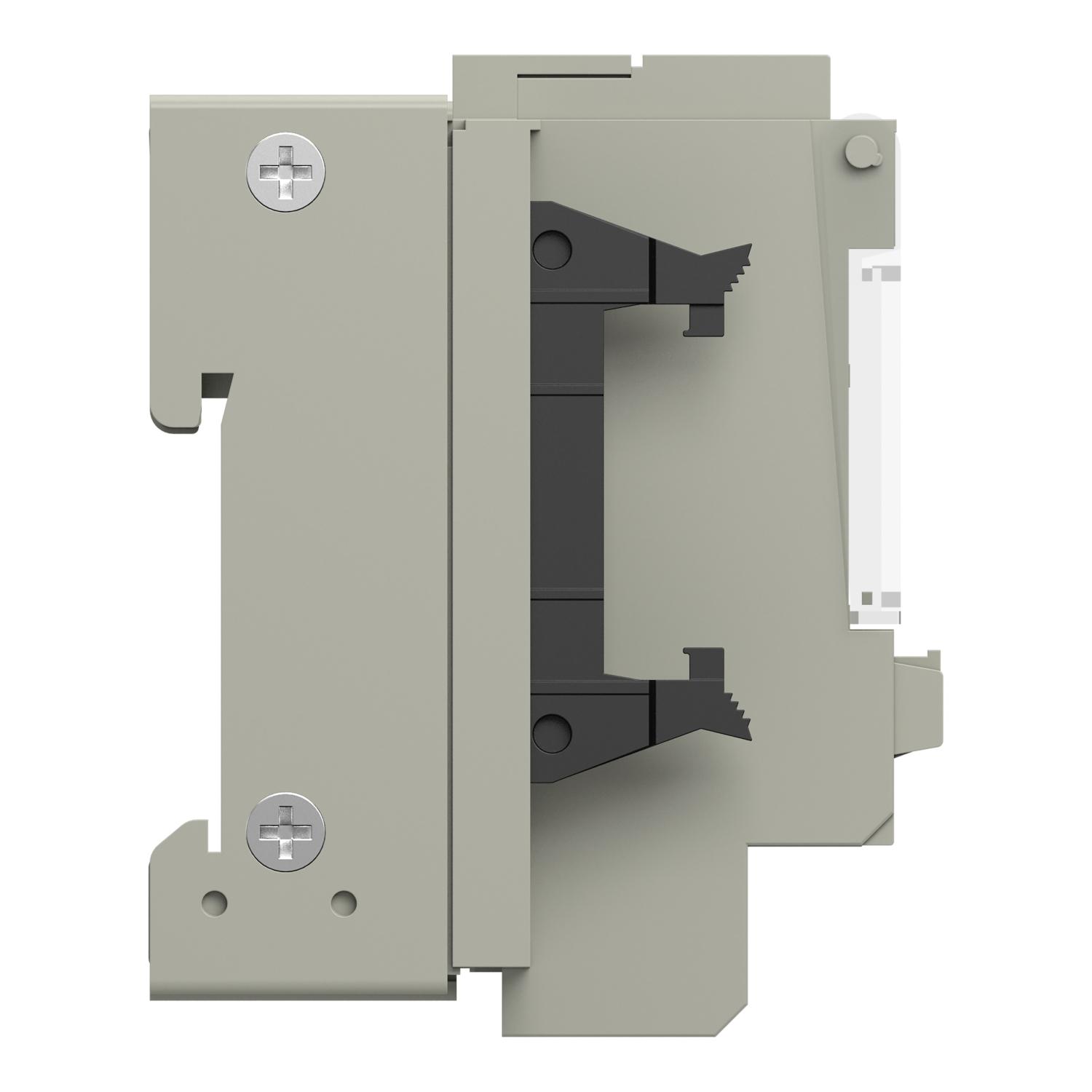

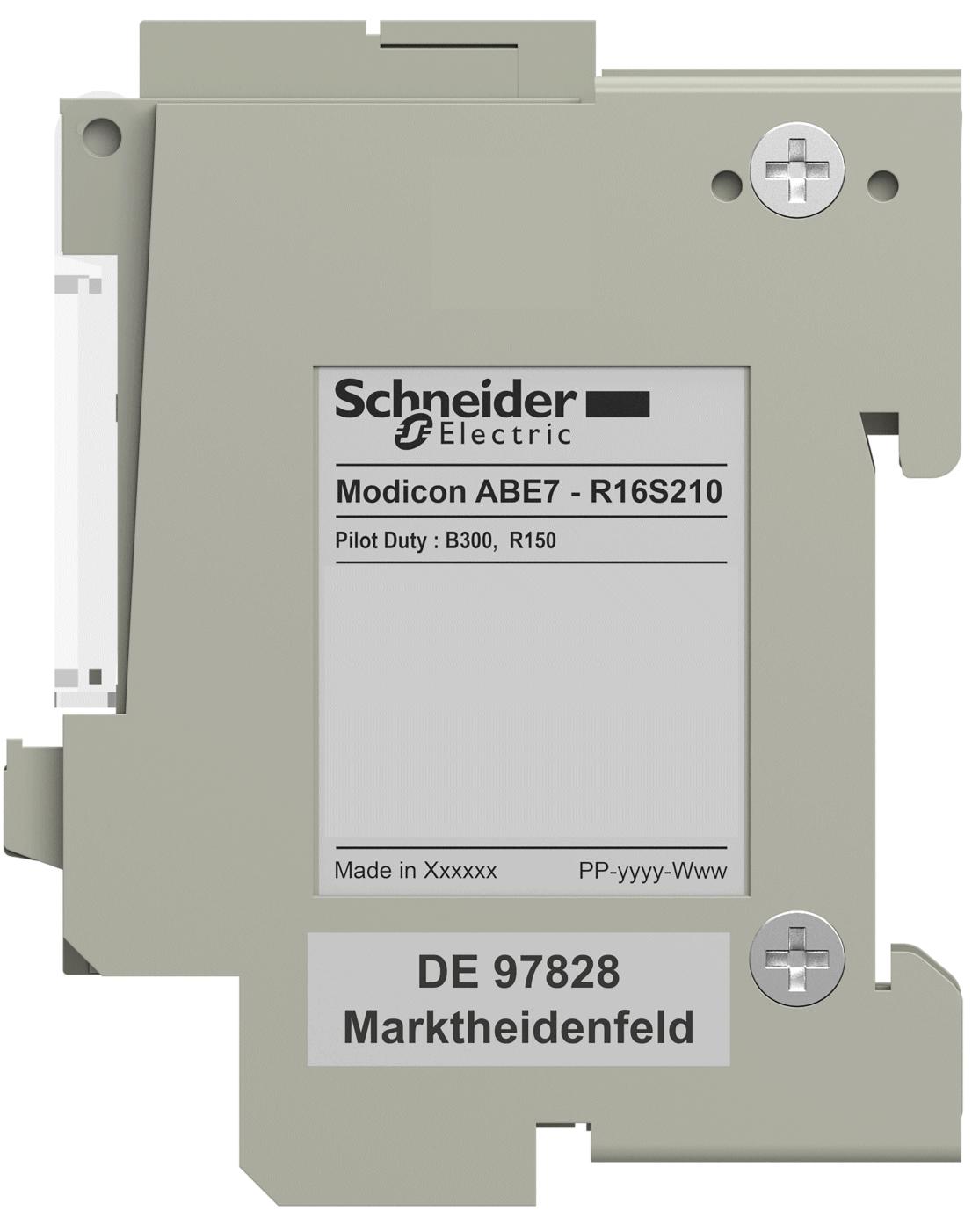

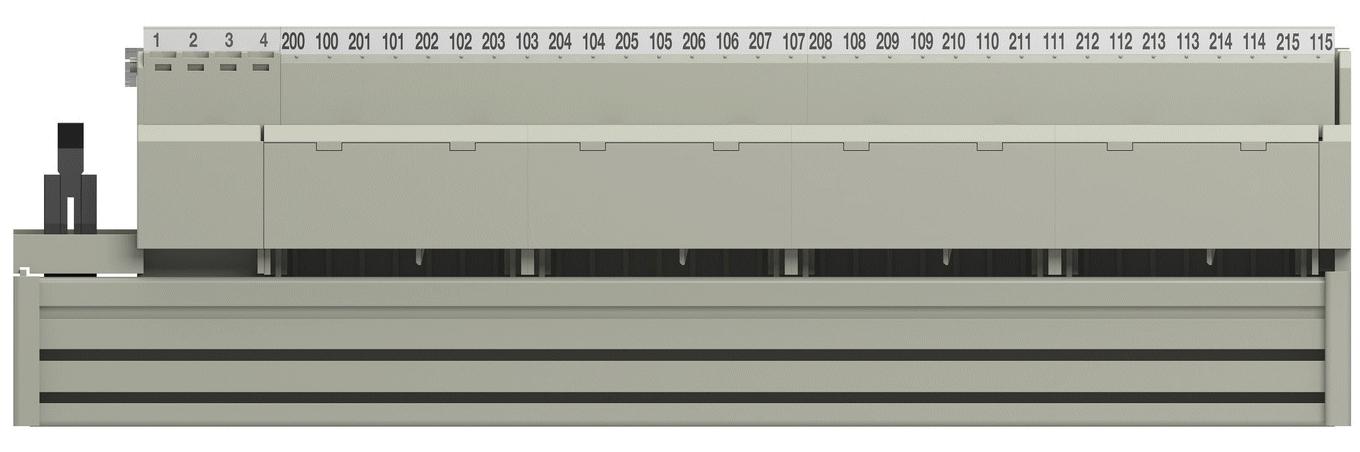

ABE7R16S210 - PICTURE(S)
