Home > SCHNEIDER > PLC > TSX57 > TSXAEY414
Manufacturer SCHNEIDER
Reference TSXAEY414
Designation Analog input module, Modicon Premium, 4 high level inputs, 16 bits conversion, 660mA at 5VDC
from 525 € (VAT excluded)   12-months warranty on SCHNEIDER - TSXAEY414
NEW
quantityunit price
1 part627 €
2 parts596 €
3 parts571 €
4 parts551 €
5 parts538 €
> 5 parts525 €
Sent within 3/4 weeks
12-months warranty
TSXAEY414
Analog input module, Modicon Premium, 4 high level inputs, 16 bits conversion, 660mA at 5VDC
STATUS : NEW
EAN13 : 3389110756951
HS (Tariff no) : 85389091
Weight : 0.6 Kg (package weight for one unit)
ORDER NOW
Want a better price ?
- for larger quantities of the same part?
- if you order different parts of our catalog ?
- if you find a better price elsewhere ?
- for the same part as 'reconditioned' (18-months warranty) ?
Please, ask us for price, stock and delivery delay
TSXAEY414 - PRODUCT DESCRIPTION
The TSXAEY414 is a Schneider Electric analog input module designed for the Modicon Premium automation platform, offering 4 high-level input channels with 16-bit resolution and a nominal read cycle time of 550 ms. It supports a wide variety of input signal types including current (4–20 mA), voltage ranges (±10 V, 0–10 V, 1–5 V, etc.), resistors (0–400 Ω and 0–3850 Ω), temperature probes (Pt100, Pt1000, Ni1000), and thermocouples (types B, E, J, K, L, N, R, S, T, U), making it highly versatile for industrial measurement and process control applications. The module draws 660 mA at 5 V DC, operates between 0 and 60 °C, and carries an IP20 protection rating with screw terminal block connections. It provides robust galvanic isolation between channels and the bus (1780 Vrms) as well as between channels themselves (2830 Vrms), and complies with standards including IEC 1131, IEC 584, IEC 751, and DIN 43710/43760. While a reliable and capable module for legacy Premium PLC installations, Schneider Electric has announced its end of commercialization, meaning it is no longer available as a new product — though after-sales support and repairs remain available until end of life.
TSXAEY414 - TECHNICAL SPECIFICATIONS
Links and Documents for TSXAEY414
Documents common to all PLC/TSX57 models

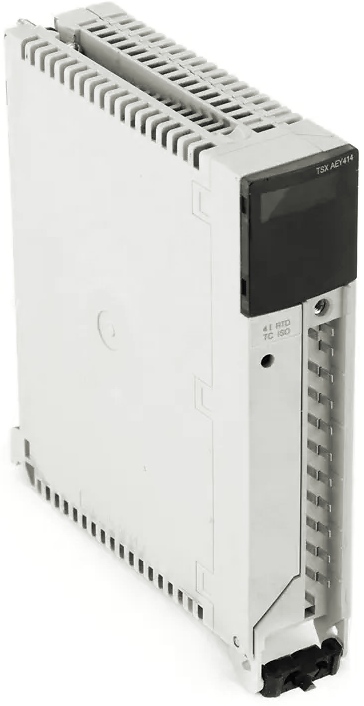

TSXAEY414 - PICTURE(S)
