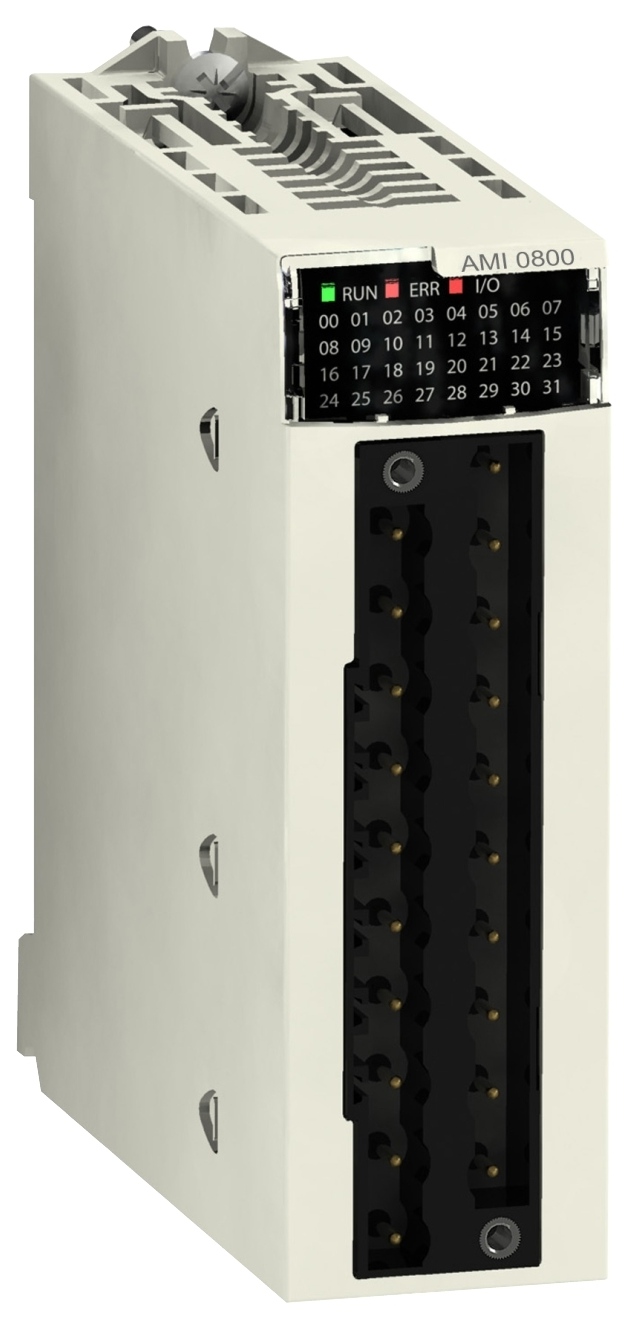

This analog isolated input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 4 input channels. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. The module offers different ranges of voltage or current for each of the inputs depending on configuration choice. This product is IP20 rated and offers 1208015 hours of MTBF. This analog module has a weight of 0.143kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws. Specifications Range of product : Modicon X80 Product or component type : Analog input module electrical connection : 20 ways 1 connector Isolation between channels : Isolated Input level : High level Analogue input number : 4 analogue input type : - Current +/- 20 mA - Current 0...20 mA - Current 4...20 mA - Voltage +/- 10 V - Voltage +/- 5 V - Voltage 0...10 V - Voltage 0...5 V - Voltage 1...5 V Additional information Analog/digital conversion : 24 bits analogue input resolution : 16 bits permitted overload on inputs : - +/- 30 V +/- 10 V - +/- 30 V +/- 5 V - +/- 30 V 0...10 V - +/- 30 V 0...5 V - +/- 30 V 1...5 V - +/- 90 mA +/- 20 mA - +/- 90 mA 0...20 mA - +/- 90 mA 4...20 mA input impedance : - 10 MOhm in voltage mode - 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode Precision of internal conversion resistor : 0.1 % - 15 ppm/°C Type of filter : First order digital filtering Fast read cycle time : 1 ms + 1 ms x number of channels used Nominal read cycle time : 5 ms for 4 channels measurement error : - <= 0.1 % of full scale +/- 10 V 0...60 °C - <= 0.1 % of full scale +/- 5 V 0...60 °C - <= 0.1 % of full scale 0...10 V 0...60 °C - <= 0.1 % of full scale 0...5 V 0...60 °C - <= 0.1 % of full scale 1...5 V 0...60 °C - <= 0.3 % of full scale +/- 20 mA 0...60 °C - <= 0.3 % of full scale 0...20 mA 0...60 °C - <= 0.3 % of full scale 4...20 mA 0...60 °C - 0.075 % of full scale +/- 10 V 25 °C - 0.075 % of full scale +/- 5 V 25 °C - 0.075 % of full scale 0...10 V 25 °C - 0.075 % of full scale 0...5 V 25 °C - 0.075 % of full scale 1...5 V 25 °C - 0.15 % of full scale +/- 20 mA 25 °C - 0.15 % of full scale 0...20 mA 25 °C - 0.15 % of full scale 4...20 mA 25 °C temperature drift : - 15 ppm/°C +/- 10 V - 15 ppm/°C +/- 5 V - 15 ppm/°C 0...10 V - 15 ppm/°C 0...5 V - 15 ppm/°C 1...5 V - 30 ppm/°C +/- 20 mA - 30 ppm/°C 0...20 mA - 30 ppm/°C 4...20 mA Recalibration : Internal Minimum crosstalk attenuation : 80 dB Common mode rejection : 90 dB Digital value format : - - 32768 to + 32767 in maximum user scale - +/- 10000 by default isolation voltage : - 300 V DC between channels - 1400 V DC between channels and ground - 1400 V DC between channels and bus measurement resolution : - 0.35 mV +/- 10 V - 0.35 mV +/- 5 V - 0.35 mV 0...10 V - 0.35 mV 0...5 V - 0.35 mV 1...5 V - 0.92 µA +/- 20 mA - 0.92 µA 0...20 mA - 0.92 µA 4...20 mA maximum conversion value : - +/- 11.4 V +/- 10 V - +/- 11.4 V +/- 5 V - +/- 11.4 V 0...10 V - +/- 11.4 V 0...5 V - +/- 11.4 V 1...5 V - 0...30 mA +/- 20 mA - 0...30 mA 0...20 mA - 0...30 mA 4...20 mA operating altitude : - 0...2000 m - 2000...5000 m with derating factor status LED : - 1 LED (green) RUN - 1 LED per channel (green) channel diagnostic - 1 LED (red) ERR - 1 LED (red) I/O Net weight : 0.143 kg power consumption in W : - 0.82 W 24 V DC typical - 1.30 W 24 V DC maximum - 0.32 W 3.3 V DC typical - 0.48 W 3.3 V DC maximum Environment vibration resistance : 3 gn shock resistance : 30 gn Ambient air temperature for storage : -40…85 °C Ambient air temperature for operation : 0…60 °C relative humidity : 5…95 % at 55 °C without condensation IP degree of protection : IP20 Directives : - 2014/35/EU - low voltage directive - 2014/30/EU - electromagnetic compatibility Product certifications : CE,RCM,CSA,EAC,Merchant Navy, UL Standards : - EN/IEC 61010-2-201 - EN/IEC 61131-2 - UL 61010-2-201 - CSA C22.2 No 61010-2-201

BMXAMI0410 - TECHNICAL SPECIFICATIONS
